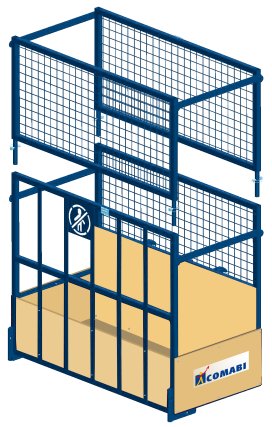

MONTANA WIRE CAGE

Use : Intensive

High-capacity scaffolding lift. Half optional Extension.

Load 200 kg up to 32.00 m high.
Semi-automatic interlocking of the winch and containers (box, bucket, etc.) for quick, reliable installation.
Multi-modular body: 12 possible configurations with the "Modularity +" pack.
Removable winch for increased safety (no risk of theft).
2.00 m ladder weighing only 12 kg; Oblong rungs ; Payload of 200 kg even in the vertical position; Knee support adjustment 0-60°; Useful length 32.00 m; Working angle to the ground 30 to 90°; Elevation speed 22 m/min; Winch: 1100 W - 230 V single-phase - PC board; Cable length 65.00 m - 5mm dia.; Disconnectable 24 V remote control; Lower limit switch on removable stop; Upper limit switch: via electrical sensor ; Safety: automatic cable slack-prevention; Power cable (not supplied)

Use : Intensive

Designation

Ref : 05022939	Designation : Large capacity, wire-mesh scaffolding - hoisting crate - base	Weight (kg) : 49,38kg
EAN barcode : 3534740141732

Ref : 05022940	Designation : Large capacity, wire-mesh scaffolding - hoisting crate - wire-mesh half-extension (to be used in pairs for a full extension)	Weight (kg) : 18,40kg
EAN barcode : 3534740141749

Ref : 05022938	Designation : MONTANA - Large capacity, wire-mesh scaffolding - hoisting crate - complete	Weight (kg) : 67,80kg
EAN barcode : 3534740141756

Technical features	Description
Use	Intensive
Max access / working height (m)	32,00m
Material	Aluminium
Maximum load (kg)	200kg
Warranty (years)	2
Standard	EN 12158/2
Recommendations	Comply with the Machine Directive 2006-42-CE
