R200 SIDE RAILS AND FRAMES
EN 12810 ; EN 12811
- Complies with the EN 12810 and EN 12811 standards
- Comfortable: 75 cm free passageway
- Simple: quick, intuitive erection
- Safe: 100% safe erection
- Lightweight, robust components for faster implementation.
- Compatible with Solidium and M368 multidirectional scaffolding. Scaffolding of the inner and outer corners (straight or variable), with a walkway through the corner decks.
- Discover the new R3 PROGRESS frame sockets with additional R200/multi M368 erection options.
- The sockets of the R200 RECORD frames are unchanged.

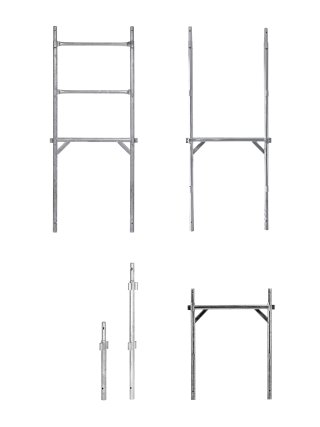

h-frame
| Designation |
|---|
| R3 H-frame, 2.00 m, steel |
| R200 R3 H-frame 2.00 m - aluminium |
half frame
| Designation |
|---|
| R40 half frame, 1.00 m, steel |
| R200 R40 half frame, 1.00 m, aluminium |
frame asymmetrical
| Designation |
|---|
| R4 2.00 m frame, asymmetrical, steel |
| R200 R4 asymmetrical aluminium frame |

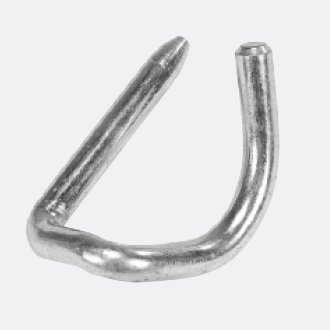

pin
| Designation |
|---|
| RCM12 12 mm dia split pin |
side rail
| Designation |
|---|
| R200 R5 1.00 m aluminium side rail |
| R50 0.50 aluminium side rail |
| R50 0.50 m steel side rail |
| R5 1.00 m steel side rail |
h-frame
| Designation | Ref. | Gencod | Weight (kg) | Label | Packing | Characteristics |
|---|---|---|---|---|---|---|
| R3 H-frame, 2.00 m, steel |
04002004
|
3534740121994 | 15.91 | 25 | ||
| R200 R3 H-frame 2.00 m - aluminium |
04702010
|
3534740126180 | 8.58 | 25 |
half frame
| Designation | Ref. | Gencod | Weight (kg) | Label | Packing | Characteristics |
|---|---|---|---|---|---|---|
| R40 half frame, 1.00 m, steel |
04002005
|
3534740122014 | 10.00 | |||
| R200 R40 half frame, 1.00 m, aluminium |
04702012
|
3534740126203 | 5.10 |
frame asymmetrical
| Designation | Ref. | Gencod | Weight (kg) | Label | Packing | Characteristics |
|---|---|---|---|---|---|---|
| R4 2.00 m frame, asymmetrical, steel |
04002006
|
3534740122007 | 13.00 | |||
| R200 R4 asymmetrical aluminium frame |
04702011
|
3534740126197 | 6.84 |
pin
| Designation | Ref. | Gencod | Weight (kg) | Label | Packing | Characteristics |
|---|---|---|---|---|---|---|
| RCM12 12 mm dia split pin |
00080450
|
3534740014197 | 0.19 | - |
side rail
| Designation | Ref. | Gencod | Weight (kg) | Label | Packing | Characteristics |
|---|---|---|---|---|---|---|
| R200 R5 1.00 m aluminium side rail |
04703001
|
3534740125084 | 1.15 | |||
| R50 0.50 aluminium side rail |
04703002
|
3534740125077 | 1.15 | |||
| R50 0.50 m steel side rail |
00010517
|
3534740001708 | 2.00 | |||
| R5 1.00 m steel side rail |
04002007
|
3534740122021 | 3.80 |
