NEOLIUM 400 LINE

HIGH-PERFORMANCE WELDED ALUMINIUM

  • Brace version

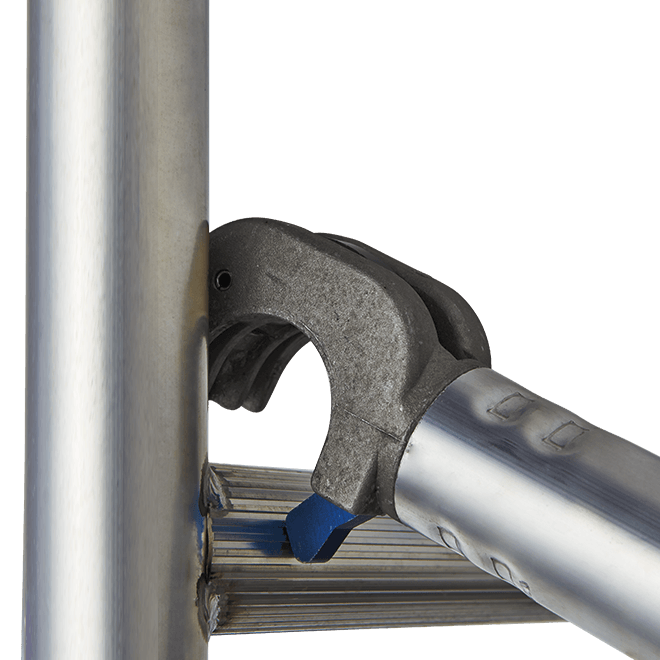

  • Welded aluminium scaffold, 50 mm uprights and rungs
  • Platform with toeboards apart integrate
  • Wheels Ø 200 mm with powerful locking system and millimetric adjustment system
  • Work with level offset.
  • Platform 1,90 x 1,32 m

Max work / access height (m)

Ref : 02924802Work / access height (m) : 4,00mProduct overall height (m) : 3,13m
Platform height (m) : 2,00Number of platforms : 1Width with stabilizers folded : 1,64
Width with stabilizers open : 4,31Stabilizers folded length : 2,26Stabilizers deployed length : 4,66
Weight (kg) : 138,00kgEAN barcode : 3534740166179
Ref : 02924804Work / access height (m) : 6,00mProduct overall height (m) : 5,13m
Platform height (m) : 4,00Number of platforms : 2Width with stabilizers folded : 1,64
Width with stabilizers open : 4,31Stabilizers folded length : 2,26Stabilizers deployed length : 4,66
Weight (kg) : 215,00kgEAN barcode : 3534740166186
Ref : 02924806Work / access height (m) : 8,00mProduct overall height (m) : 7,13m
Platform height (m) : 6,00Number of platforms : 3Width with stabilizers folded : 1,64
Width with stabilizers open : 4,31Stabilizers folded length : 2,26Stabilizers deployed length : 4,66
Weight (kg) : 291,00kgEAN barcode : 3534740166193
Ref : 02924808Work / access height (m) : 10,00mProduct overall height (m) : 9,13m
Platform height (m) : 8,00Number of platforms : 4Width with stabilizers folded : 1,64
Width with stabilizers open : 5,40Stabilizers folded length : 2,26Stabilizers deployed length : 5,90
Weight (kg) : 384,00kgEAN barcode : 3534740166209
Ref : 02924810Work / access height (m) : 12,00mProduct overall height (m) : 11,13m
Platform height (m) : 10,00Number of platforms : 5Width with stabilizers folded : 1,64
Width with stabilizers open : 5,40Stabilizers folded length : 2,26Stabilizers deployed length : 5,90
Weight (kg) : 461,00kgEAN barcode : 3534740166216
Ref : 02924812Work / access height (m) : 14,00mProduct overall height (m) : 13,13m
Platform height (m) : 12,00Number of platforms : 6Width with stabilizers folded : 1,64
Width with stabilizers open : 5,40Stabilizers folded length : 2,26Stabilizers deployed length : 5,90
Weight (kg) : 537,00kgEAN barcode : 3534740166223
Technical featuresDescription
UseUltra intensive
Type of floorFlat and uneven floor
Max access / working height (m)14,00m
Platform length (m)1,90m
Platform width (m)1,32m
Floor space length (m)2,26m
Floor space width (m)1,64m
MaterialAluminium
Max load (kg / m²)200kg/m²
Warranty (years)5
StandardEN 1004-1
Decree2004/924
