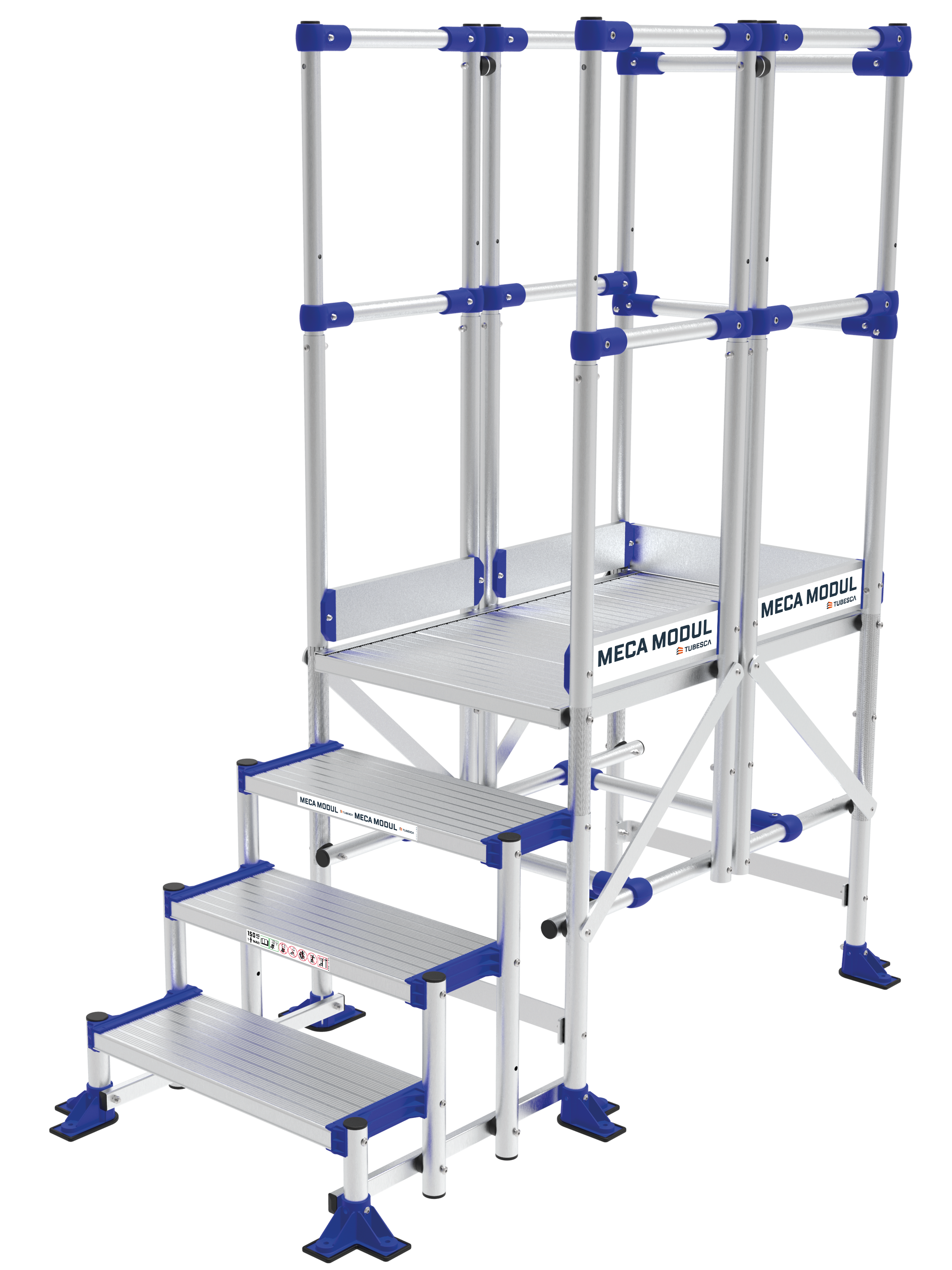

MECA MODUL PLATFORM 4 STEPS 3 GR

The right answer

Industrial platform combining scalability, safety and comfort of the Meca Modul range. Meca Modul is a standardised solution adaptable to your specific needs enabling you to work, move and access in safety in an industrial environment. This Platform is available in lengths from 0.5 to 2 m and meets the EN 14 122 standard requirements.
  • Industrial platform combining scalability, safety and comfort.
  • Product that can be fixed to the floor.
  • Access ramps are optional to increase fall protection.
  • This product is a means of access and not a workstation.
  • Order the Meca Modul Gate for a workstation model.
  • Upgradeable to walkway. Consult us.
  • Total width : 836 mm
    Platform width : 596 mm
    Total height : 1,93 m

Max work / access height (m)

Ref : 02380404Work / access height (m) : 2,77mNumber of rungs / steps : 4
Platform height (m) : 0,77Platform length (m) : 2.00Clearance under the platform Hxl (m) : 0,34 x 1,75 m
Exterior dimensions Width (mm) : 840Weight (kg) : 61,30kgEAN barcode : 3178740222574
Ref : 02380403Work / access height (m) : 2,77mNumber of rungs / steps : 4
Platform height (m) : 0,77Clearance under the platform Hxl (m) : 0,34 x 1,25 mExterior dimensions Width (mm) : 840
Weight (kg) : 49,60kgEAN barcode : 3178740222567
Ref : 02380402Work / access height (m) : 2,77mNumber of rungs / steps : 4
Platform height (m) : 0,77Platform length (m) : 1.00Clearance under the platform Hxl (m) : 0,34 x 0,75 m
Exterior dimensions Width (mm) : 840Weight (kg) : 37,90kgEAN barcode : 3178740222550
Ref : 02380401Work / access height (m) : 2,77mNumber of rungs / steps : 4
Platform height (m) : 0,77Clearance under the platform Hxl (m) : 0,34 x 0,25 mExterior dimensions Width (mm) : 840
Weight (kg) : 26,20kgEAN barcode : 3178740222543
Technical featuresDescription
UseIntensive
StandardEN 14122
Warranty (years)3
Max load (kg / m²)200kg/m²
Type of floorFlat floor
MaterialAluminium
