MECA MODUL PLATFORM 2 STEPS

The right answer

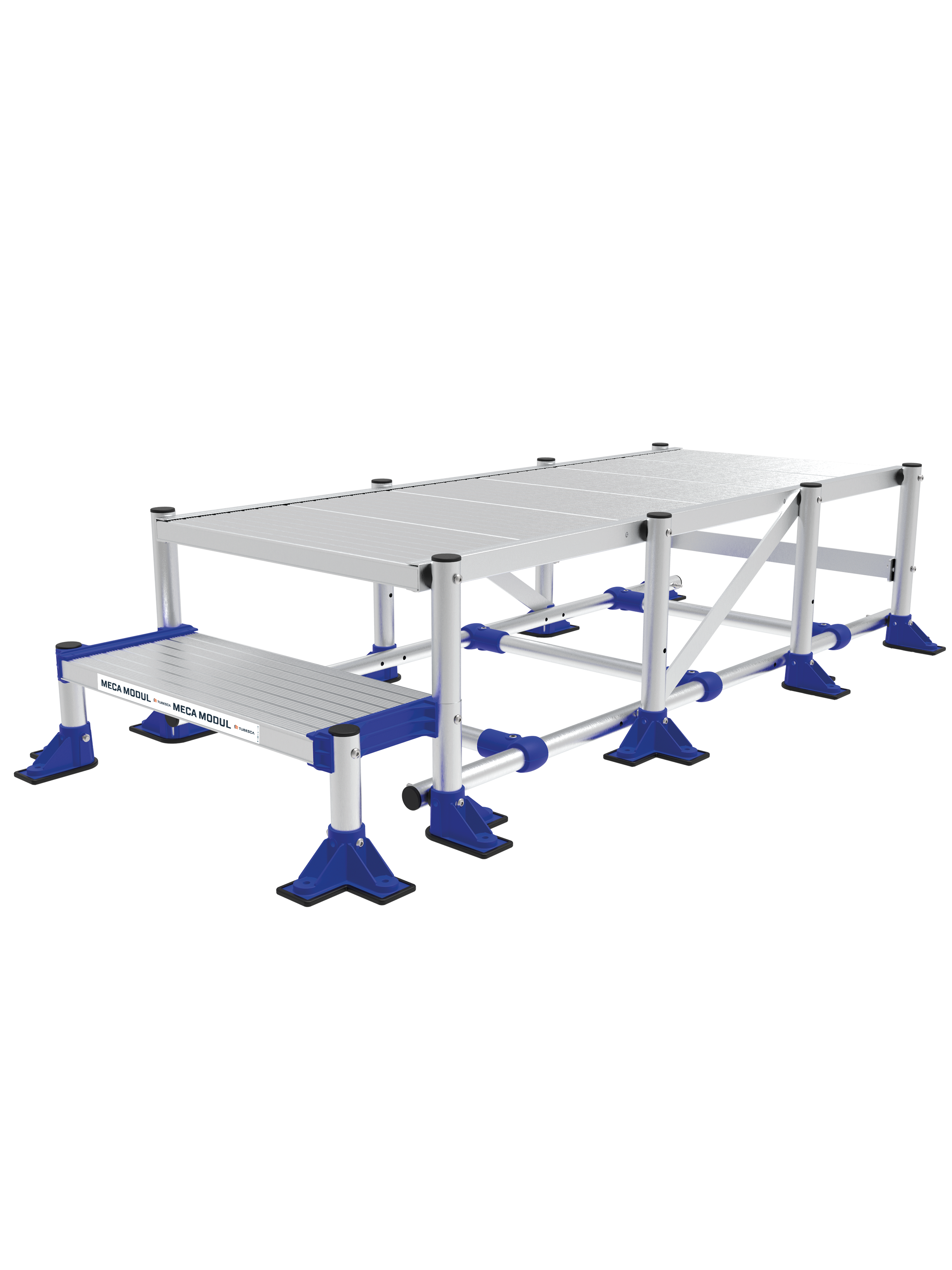

Low-height access platform from the Meca Modul range. Meca Modul is a standardised solution adaptable to your specific needs enabling you to work, move around and access safely in an industrial environment. This platform meets the EN 14 122 standard requirements.
  • Product that can be fixed to the floor.
  • Available in platform lengths of 1 m, 1,5 m and 2 m
  • Platform width: 596 mm
    Total width: 836 mm

Max work / access height (m)

Ref : 02380263Work / access height (m) : 2,39mNumber of rungs / steps : 2
Platform height (m) : 0,39Total lenght (m) : 2.40Platform length (m) : 2.00
Exterior dimensions Width (mm) : 840Weight (kg) : 23,80kgEAN barcode : 3178740223397
Ref : 02380262Work / access height (m) : 2,39mNumber of rungs / steps : 2
Platform height (m) : 0,39Exterior dimensions Width (mm) : 840Weight (kg) : 19,60kg
EAN barcode : 3178740223380
Ref : 02380261Work / access height (m) : 2,39mNumber of rungs / steps : 2
Platform height (m) : 0,39Platform length (m) : 1.00Exterior dimensions Width (mm) : 840
Weight (kg) : 14,10kgEAN barcode : 3178740223373
Technical featuresDescription
UseIntensive
StandardEN 14122
Warranty (years)3
Max load (kg / m²)200kg/m²
Type of floorFlat floor
MaterialAluminium
